This example is for Wiring version 1.0 build 0100+. If you have a previous version, use the examples included with your software. If you see any errors or have comments, please let us know .
LM7805 5 Volts power regulator by BARRAGAN http://barraganstudio.com

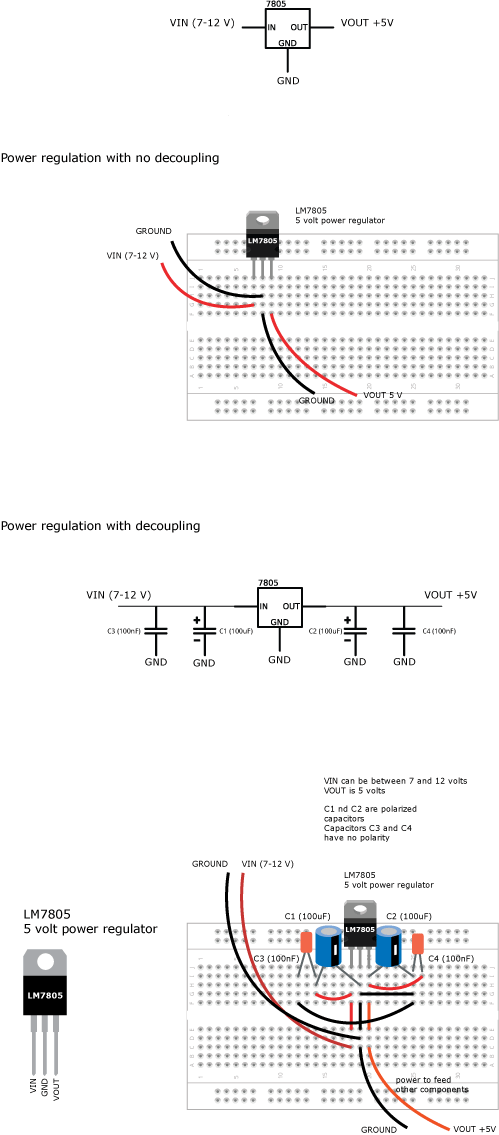

Demonstrates how to connect a LM7805 power regulator to get 5V regulated power with and without decoupling capacitors Decoupling reduced noise from the power supply.
