This example is for Wiring version 1.0 build 0100+. If you have a previous version, use the examples included with your software. If you see any errors or have comments, please let us know .

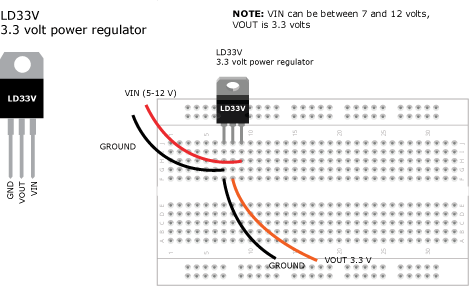

LD33V 3.3 Volts power regulator by BARRAGAN http://barraganstudio.com
Demonstrates how to connect a LD33V power regulator to get 3.3V regulated power with and without decoupling capacitors Decoupling reduced noise from the power supply.
