Servo motor & Processing

This example is for Wiring version 1.0 build 0100+. If you have a previous version, use the examples included with your software. If you see any errors or have comments, please let us know.

Driving a DC motor from a graphical user interface by BARRAGAN http://barraganstudio.com

Read data from the serial and turns a DC motor on or off according to the value On Wiring v1 boards the PWM capable pins are: 29, 30, 31, 35, 36 and 37 On Wiring S board the PWM capable pins are: 4, 5, 6, 7, 19 and 20

char val;         // Data received from the serial port

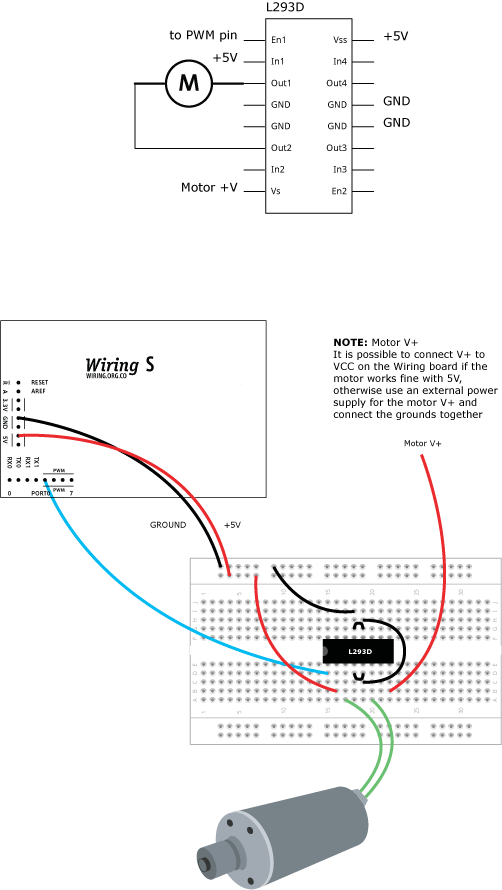

int motorpin = 4; // Wiring: Connect L293D Pin En1 connected to pin PWM 4

void setup()
{
  pinMode(motorpin, OUTPUT);
  Serial.begin(9600); // Start serial communication at 9600 bps
}

void loop()
{
  if (Serial.available())         // If data is available,
  {
    val = Serial.read();          // read it and store it in val
    if (val == 'H')               // If 'H' was received,
    {
      analogWrite(motorpin, 125); // turn the motor on at medium speed
    }
    else if (val == 'L')          // If 'L' was received
    {
      analogWrite(motorpin, 0);   // turn the motor off
    }
  }
  delay(100); // Wait 100 milliseconds for next reading
}



/* Processing code for this example

// Write data to the serial port according to the status of a button controlled
// by the mouse

import processing.serial.*;

Serial port;                // Create serial port object
boolean rectOver = false;
int rectX, rectY;           // Position of square button
int rectSize = 100;         // Diameter of rect
color rectColor;
boolean buttonOn = false;   // Status of the button
boolean firstTime = true;

void setup() {
  size(200, 200);
  noStroke();
  rectColor = color(100);
  rectX = width/2 - rectSize/2;
  rectY = height/2 - rectSize/2;

  // List all the available serial ports in the output pane.
  // You will need to choose the port that the Wiring board is
  // connected to from this list. The first port in the list is
  // port #0 and the third port in the list is port #2.
  println(Serial.list());

  // Open the port that the Wiring board is connected to (in this case #2)
  // Make sure to open the port at the same speed Wiring is using (9600bps)
  port = new Serial(this, Serial.list()[2], 9600);
}

void draw() {
  // Wait 3 seconds for the Wiring board to start
  if (firstTime) {
    delay(3000);
    firstTime = false;
  }
  update(mouseX, mouseY);
  background(0);            // Clear background to black
  fill(rectColor);
  rect(rectX, rectY, rectSize, rectSize);
}

void update(int x, int y) {
  if (overRect(rectX, rectY, rectSize, rectSize) == true) {
    rectOver = true;
  }
  else {
    rectOver = false;
  }
}

void mouseReleased() {
  if (rectOver == true) {
    if (buttonOn) {
      rectColor = color(100);
      buttonOn = false;
      port.write('L');      // Send an L to indicate button is OFF
    }
    else {
      rectColor = color(180);
      buttonOn = true;
      port.write('H');      // Send an H to indicate button is ON
    }
  }
}

boolean overRect(int x, int y, int width, int height) {
  if ((mouseX >= x) && (mouseX <= x+width) &&
    (mouseY >= y) && (mouseY <= y+height)) {
    return true;
  }
  else {
    return false;
  }
}

*/
