Potentiometer \ Learning \ Wiring

This example is for Wiring version 1.0 build 0100+. If you have a previous version, use the examples included with your software. If you see any errors or have comments, please let us know.

Reading a potentiometer by BARRAGAN http://barraganstudio.com

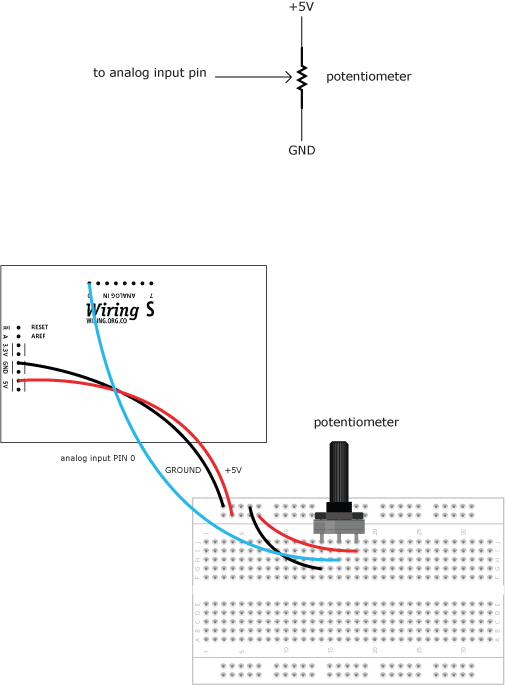

Reads values from a potentiometer connected to the analog input pin 0. The value read from the sensor is proportional to the knob position on the potentiomenter. The value read is printed to the serial monitor

int sensorValue;

void setup()
{
  Serial.begin(9600);  // sets the serial port to 9600
}

void loop()
{
  sensorValue = analogRead(0);     // read analog input pin 0
  Serial.println(sensorValue, DEC);  // prints the value read
  delay(100);                      // wait 100ms for next reading
}
