Reading data from Processing

This example is for Wiring version 0027+. If you have a previous version, use the examples included with your software. If you see any errors or have comments, please let us know.

RFID reading by BARRAGAN

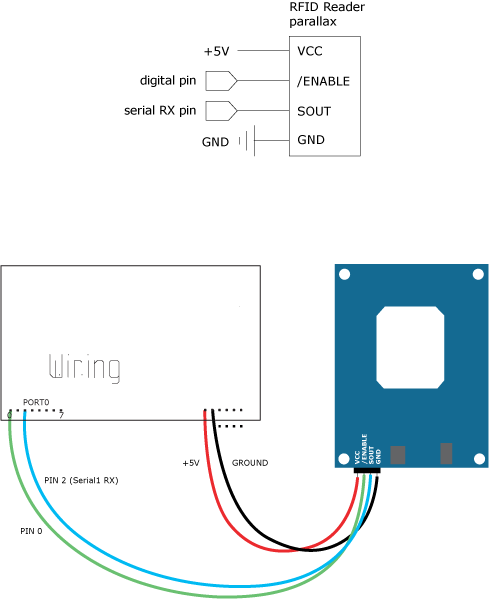

Demonstrates how to read data from a Parallax RFID reader connected to the Serial1 serial port and print the tag number through the Serial serial port.


byte val;
char code[10];
int bytesread = 0;

void setup() {
 Serial1.begin(2400);  // RFID reader SOUT pin connected to Serial1 RX pin at 2400bps
 Serial.begin(9600);   // Serial set to 9600
 pinMode(0,OUTPUT);    // Ser digital pin 0 as OUTPUT to connect it to the RFID /ENABLE pin
}

void loop() {
  digitalWrite(0, LOW);                  // Activate the RFID reader
  if(Serial1.available() > 0) {          // if data available from reader
    if((val = Serial1.read()) == 10) {   // check for header
      bytesread = 0;
      while(bytesread<10) {              // read 10 digit code
        if( Serial1.available() > 0) {
          val = Serial1.read();
          if((val == 10)||(val == 13)) { // if header or stop bytes before the 10 digit reading
            break;                       // stop reading
          }
          code[bytesread] = val;         // add the digit
          bytesread++;                   // ready to read next digit
        }
      }
      if(bytesread == 10) {              // if 10 digit read is complete
        Serial.print("TAG code is: ");   // possibly a good TAG
        Serial.println(code);            // print the TAG code
      }
      bytesread = 0;
      digitalWrite(0, HIGH);             // deactivate RFID reader
      delay(1000);                       // wait for a second
    }
  }
}
