Microphone \ Learning \ Wiring

This example is for Wiring version 1.0 build 0100+. If you have a previous version, use the examples included with your software. If you see any errors or have comments, please let us know.

microphone by Diana Fernandez

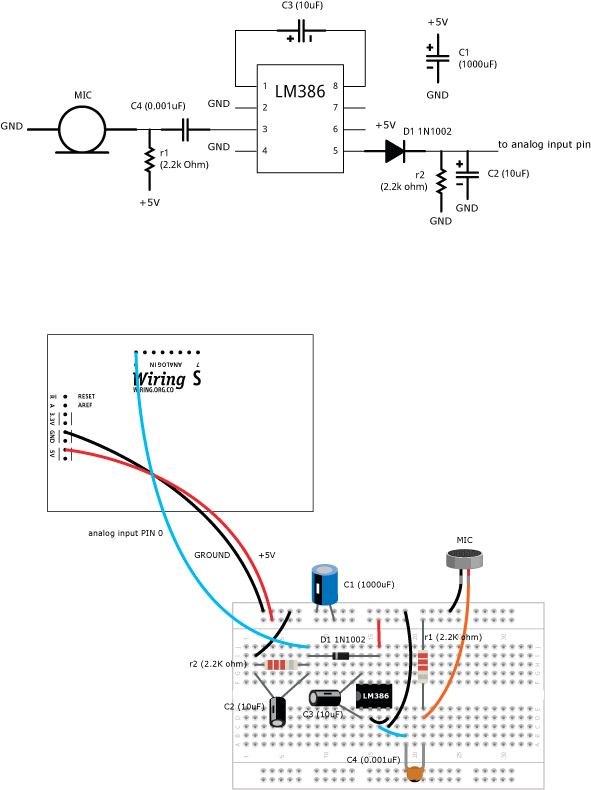

Reads values from a microphone connected to analog input pin 0. The value read from the microphone is proportional to the sound level in the proximity. The value read is printed to the serial monitor

int sensorValue;

void setup()
{
  Serial.begin(9600);  // sets the serial port to 9600
}

void loop()
{
  sensorValue = analogRead(0);       // read analog input pin 0
  Serial.println(sensorValue, DEC);  // prints the value read
  delay(100);                        // wait 100ms for next reading
}
