This example is for Wiring version 1.0 build 0100+. If you have a previous version, use the examples included with your software. If you see any errors or have comments, please let us know.

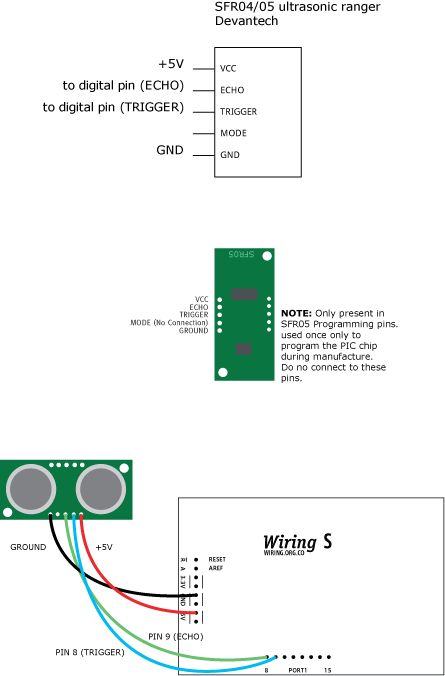

SRF04/SRF05 Devantech Ultrasonic Ranger Finder by BARRAGAN

Demonstrates reading data from the Devantech Utrasonic Rangers SFR04/SFR05

int echoPin = 9;  // digital pin to receive echo pulse
int triggerPin = 8;  // digital pin to send trigger pulse
unsigned long distance = 0;

void setup()
  pinMode(echoPin, INPUT);
  pinMode(triggerPin, OUTPUT);

void loop()
  digitalWrite(triggerPin, HIGH); // set HIGH for 15us to trigger ranging
  digitalWrite(triggerPin, LOW);  // set pin LOW
  distance = pulseIn(echoPin, HIGH);  // read in pulse length
  distance = distance / 58; // calculate distance from pulse length
  Serial.println(distance, DEC);
  delay(50);  // wait 50ms for next ranging
