Stretch light by Karmen Franinovic

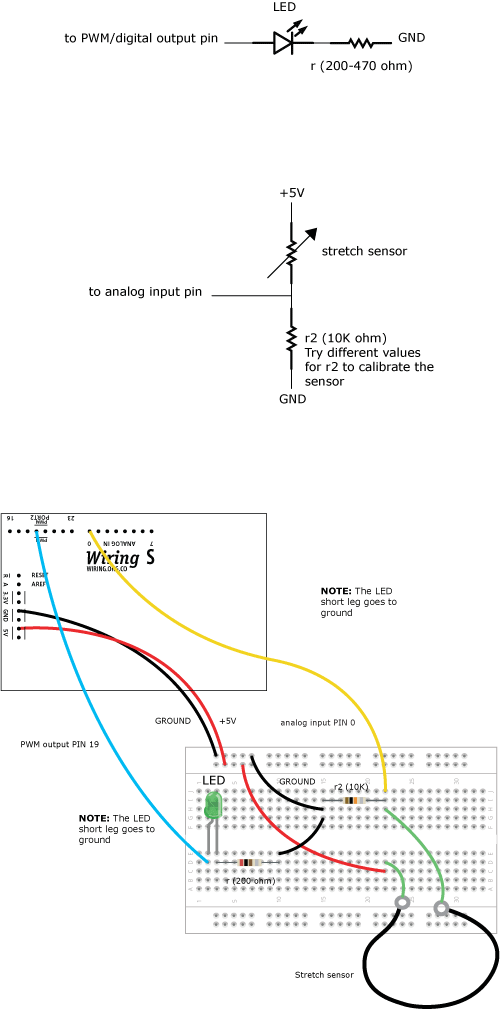

Controls an LED brightness by pulling a stretch sensor (rubbery ruler). The stretch sensor is made of conductive rubber, that changes resistance when it is streteched. The stretch sensor is connected to analog input pin 0 The LED is connected to the analog output (PWM) pin 37 On Wiring v1 boards the PWM capable pins are: 29, 30, 31, 35, 36 and 37 On Wiring S board the PWM capable pins are: 4, 5, 6, 7, 19 and 20

int sensorValue;

void setup()
  pinMode(19, OUTPUT);

void loop()
  // read analog input pin 0
  sensorValue = analogRead(0);
  // min value read from the stretch sensor was 400
  // calibrare yours accordingly
  sensorValue = (sensorValue - 400);
  // constrain value in the range 0-255
  sensorValue = constrain(sensorValue, 0, 255);
  // write value to PWM (analog) output 19
  analogWrite(19, sensorValue);
  // wait 50ms for next reading
